Sibo has focused on potentiometers and sensors for 30 years.

OF50PB
OF50PB

OF50PB

Oli-Filled POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Single turn

  • Wirewound

  • Bushingmount　

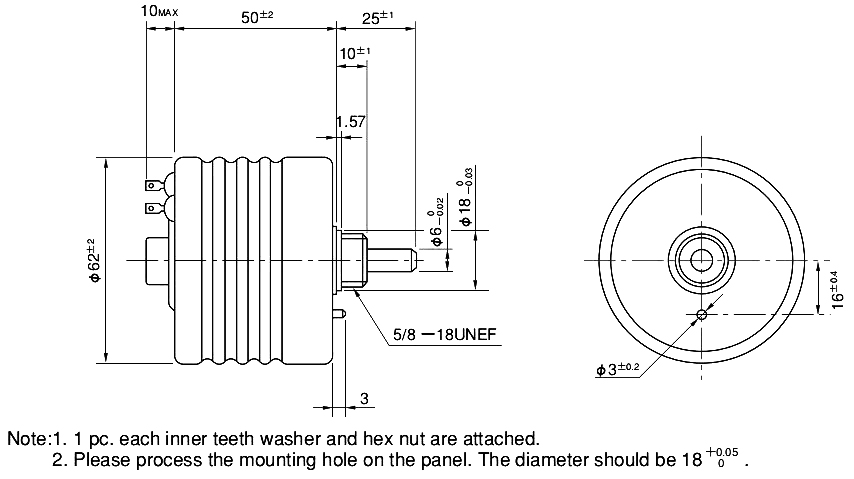

Dimension


Parameter

General Specifications

Standard Resistance Range

100Ω～20KΩ

Max. Practical Resistance Value

50KΩ

Total Resistance Tolerance

Standard Class ±10%(K), Precision Class ±5%(J)

Independent Linearity Tolerance

Standard Class ±1.0%, Precision Class ±0.5%

Power Rating

5.0W

Noise

<100Ω E.N.R.

Electrical Travel

280°±5°

Mechanical Travel

300°±5°

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<30mN·m(300gf·cm)

Stopper Strength

Approx.0.9N•m(9kgf•cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.330g

Special Specifications Available

Special shaft type

Shaft dia. (φ 6.35mm)&bushing with inch dimension, special machining on the shaft, shaft with front and rear extension (Rear shaft with 6mm dia. and 25mm length)

Special electrical travel

Special electrical travel

Special tap

Extra tap (Available up to 1 tap)

Without stopper

Electrical travel remains 280°± 5°

Special gangs

Multi-ganged (Available up to 2 gangs)
